Model

HD-D380B-XS60

HD-D380C-XS40

HD-D380C-XS20

Nominal working voltage Un

380V

380V

380V

Maximum continuous working voltage Uc

385V

385V

385V

Nominal discharge current In （8/20μs）

30KA

20KA

10KA

Maximum discharging current Imax（8/20μs）

60KA

40KA

20KA

Voltage protection level Up

2KV

1.6KV

1.2KV

Prepositive overflowing protection

63A

32A

16A

Response time Ta

≤25ns

Operating temperature range Tup

-40℃to+70℃

Working condition indication

Green light means work normally,red light means fault indicaiton.

Section of minimum installed conductor

6mm2 multi-folded wire

Protection grade

IP20

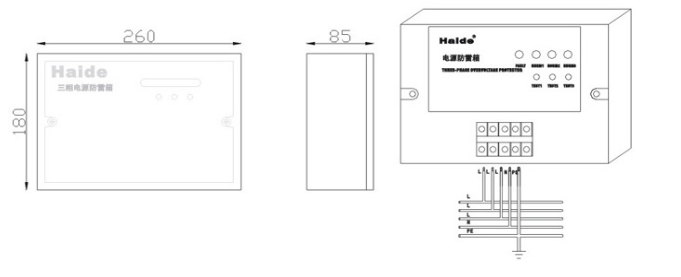

External dimension

260×180×85mm

Sheathing material

Metal spraying

Mode of connection

parallel connection

Protection mode

4+0/3+1/1+1/2+0
