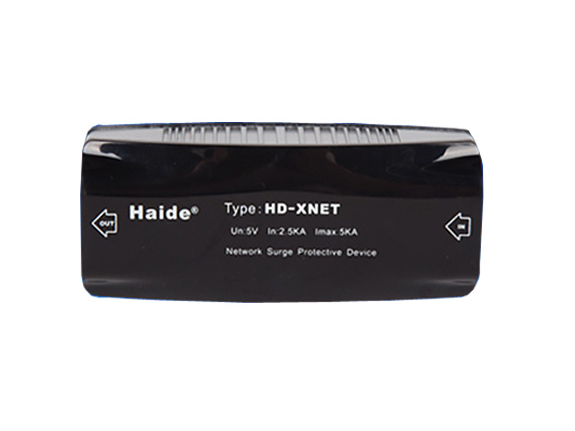

Model

HD-XNET

Rated voltage Un

5V

Maximum continuous working voltage Uc

12V

Withstanding impulse voltage Uoc

5KV

Impact current Iimp

1.5KA

Nominal discharge current In(8/20μs)

2.5KA

Maximum discharging current  Imax(8/20μs)

5KA

Voltage protection level Up

X-X

≤70V

X-G

≤400V

Series impedance R

1Ω

Bandwidth FG

100M

External dimension

96*50*38mm

Response time Ta

≤1ns

Insertion loss

≤0.2dB

Operating temperature range Tup

-40℃ to +70℃

Number of guard wire

1,2,3,6wire

Protection grade

IP20

Sheathing material

Shielding plastic fire-proof material

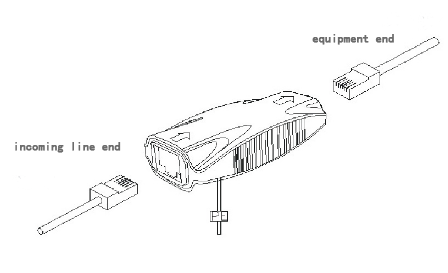

Mode of connection

Connection in series

Interface mode

RJ45

Fixed way

Guide
